Cap Embroidery Placement: Plan Around Centre Seams and Curved Front Panels

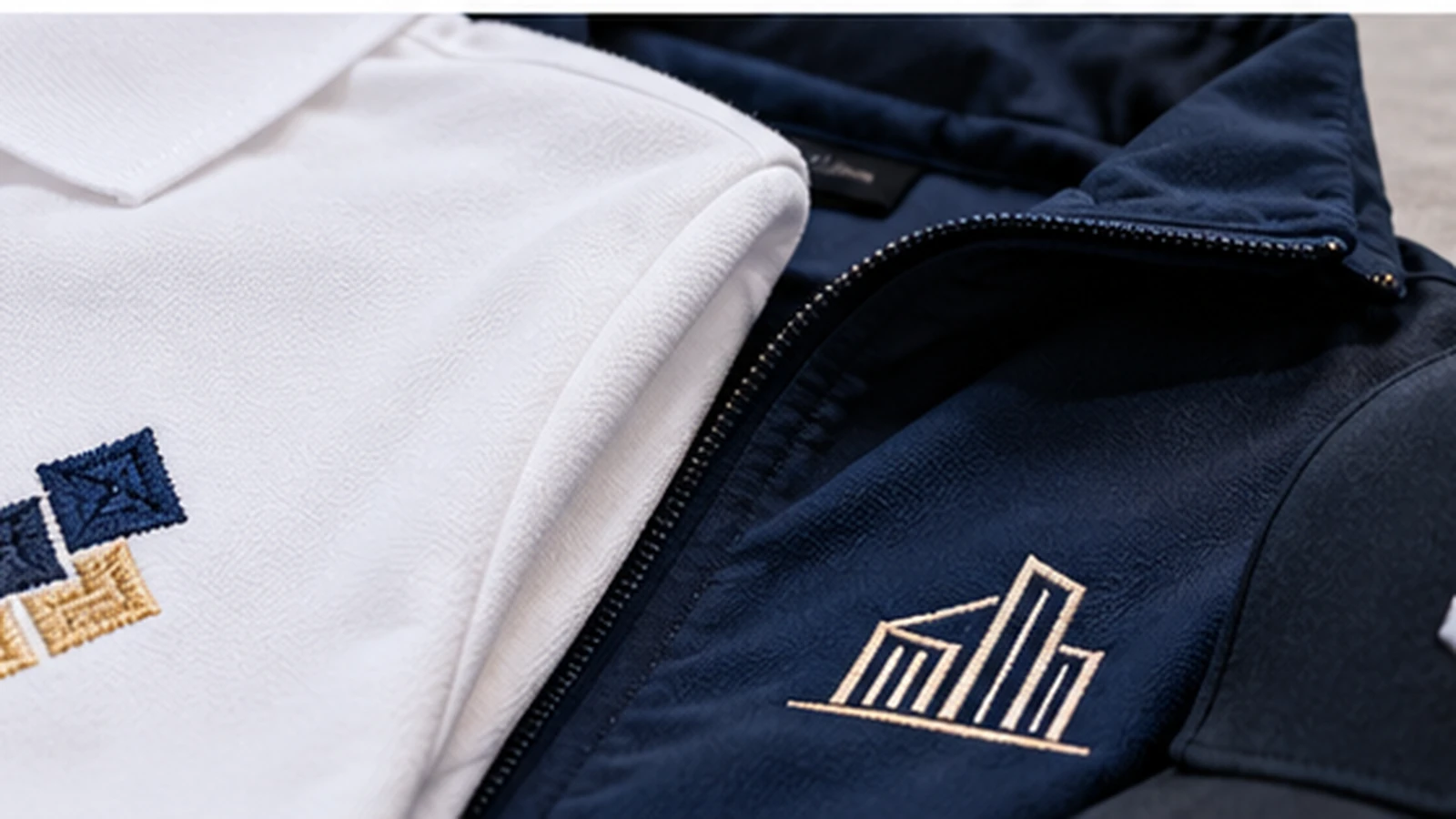

A logo that fits comfortably on a polo chest may not transfer neatly to a cap. The front panel is curved, the crown may have a centre seam, and the visor limits how low the embroidery can sit.
In This Article
Direct Answer
Treat the actual cap as the design boundary. Measure the usable front-panel area, identify seams and structural layers, then size the logo so important details stay clear of the visor and difficult stitching zones. Approve a sew-out on the selected cap model before bulk production.
Start With the Cap Construction
Structured caps often use firm front panels that hold their shape, while unstructured caps are softer and collapse more easily when not worn. Some front crowns are built from two panels joined by a centre seam; others use a smoother single-front construction. These differences change how the embroidery frame holds the cap and how flat the stitching area can become during production.
Before artwork is digitised, confirm the exact cap model. A generic cap mock-up can hide a seam or front-panel shape that materially changes the safe branding area.
Keep Fine Detail Away From the Centre Seam
A centre seam creates extra thickness and a small ridge through the middle of the front crown. Large bold stitching can cross it in some designs, but tiny lettering, thin outlines and small enclosed shapes are less forgiving when they land directly on that raised area. The seam can also make perfectly symmetrical screen artwork look slightly different once sewn over a curved surface.
If the logo allows it, position the most delicate details to one side of the seam or simplify the central portion. The goal is not to avoid the seam at all costs; it is to stop the seam from cutting through the part of the logo that needs the greatest precision.
| Cap Feature | Design Risk | Practical Response |
|---|---|---|
| Centre seam | Fine detail can distort on the ridge | Move or simplify delicate elements |
| Curved crown | Wide logo wraps away from view | Check on a worn cap |
| Visor junction | Low artwork becomes difficult to hoop | Leave production clearance |
| Soft front panel | Fabric may move more during stitching | Approve the actual cap model |
Leave Enough Clearance Above the Visor
The cap visor blocks access to the lowest part of the crown, so a logo cannot simply be pushed downward until it looks visually centred in a flat illustration. Embroidery equipment needs practical clearance, and the bottom stitches should not crowd the seam where the crown meets the visor.
Use the actual cap to mark the proposed bottom edge and overall height. A slightly smaller logo placed cleanly often looks more intentional than a tall logo forced into the narrowest possible space.
Judge the Logo on the Curved Worn Shape
The front panel curves around the head, which means the outer edges of a wide logo begin to turn away from the viewer. Very wide marks can therefore lose visual impact even if they technically fit inside the available panel width. Round emblems, horizontal wordmarks and tall crests each behave differently on the crown.
Put the cap on a head form or wearer and view it from normal distance. If the important wording disappears around the sides, reduce the width or reorganise the layout before approving embroidery.
Approve a Finished Cap, Not Only a Flat Sew-Out
A test patch is useful for thread colour and stitch quality, but the final approval should include the actual cap because structure, seam thickness and curvature are part of the result. Check whether the crown puckers, whether the logo looks level when worn and whether small details remain readable.
After approval, keep the finished embroidery width, height, placement reference and cap model with the production file. Reorders are much more repeatable when the garment structure is documented together with the artwork.
For cap embroidery, the usable logo area is defined by the crown structure—not by the empty rectangle in a mock-up.
Frequently Asked Questions
Can the same logo size used on a polo be used on a cap?+
Sometimes, but cap curvature and limited front-panel height often require a different size or layout.
Is it okay to embroider across a centre seam?+
It can be done for suitable artwork, but very fine detail is less forgiving across the raised seam.
What should be approved before bulk production?+
Approve the actual cap model with the final embroidery size and placement, not only a flat digital preview.
